How to Remove FRP Huawei Kirin 710 and 980 by USB1 Testpoint ?

Created: 2023-05-25 03:38:43

  1. Disassemble your device and connect device using Test point.
  2. You can find Testpoint at Help / Testpoint Area.
  3. Your pc will attached COM 1.0 Driver, for Drivers you can check Hydra Tool Folder.
  4. Run HiSilicon SoC.
  5. Then from drop down menu in Service tab select Factory Boot.
  6. Click on Initialize Factory mode and Hit Execute.
  7. Once in Factory mode Goto Partition Manager Tab and select Factory/USB 1 and click Partitions.
  8. Once the partitions are listed Backup Certification and oeminfo.
  9. After backup successfull again goto to Service tab and from drop down select Factory Reset Protrection/Account and hit Execute.

Note

If after frp remove still active,

format/wipe phone via recovery then remove again via Factory Mode (TP)

CONNECTION

  • CONNECTION

How to Set Fastboot Mode Huawei Devices ?

Created: 2023-05-25 04:01:26

  1. Power off your device (Cellphone / Mobile).
  2. Press and Hold "Volume Down Button" (-) and Connect USB Cable
  3. Wait until you see FASTBOOT on your cellphone / mobile screen.

REMOVE HUAWEI ID

  • Remove Huawei ID

HOW TO RESET HUAWEI ID HISILICON 980/710 BY TESTPOINT COM 1.0 ?

Created: 2023-05-25 00:09:55

  1. Disassembly your device and Testpoint your device.
  2. You can find Testpoint at Help / Testpoint Area
  3. Your pc will attached COM 1.0 Driver, for Drivers you can check Hydra Tool Folder
  4. Run HiSilicon
  5. Select Your exact model from Model list
  6. Untick Auto-Boot if it is ticked.
  7. Click on Execute and in pop-up Dialog box Click yes.

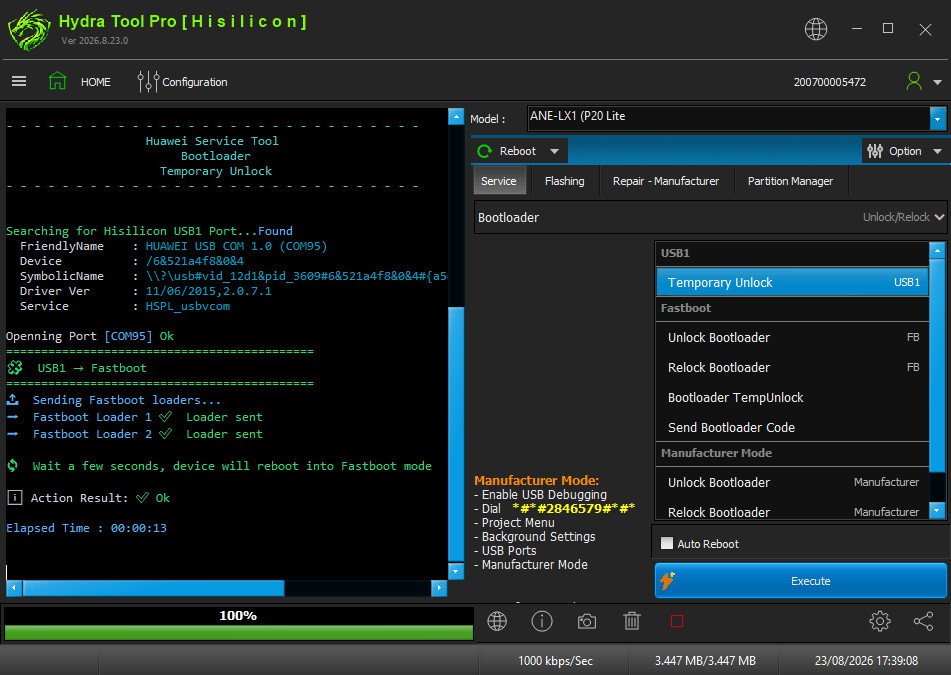

  8. After execute in second pop-up follow the instructions given like below image.
  9. After this Device is successfully booted to Unclock bootloader.

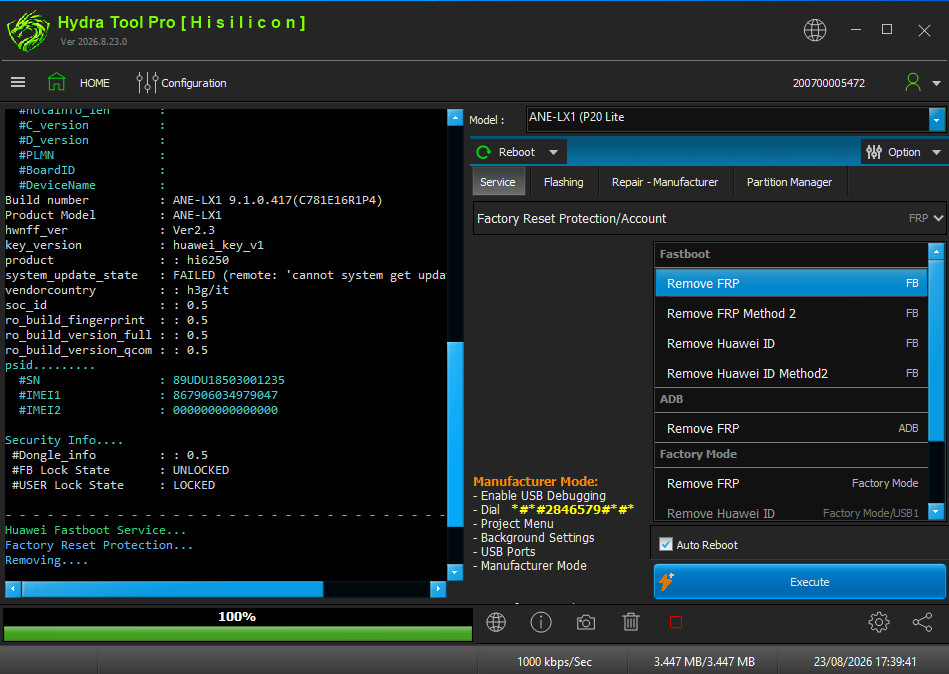

  10. From drop down menu Select Factory Reset Protection FRP/Account.
  11. In fastboot Select Remove Frp Method 2/ Remove Huawei ID and Click Execute.
  12. Wait until operation is completed.

VIDEO GUIDES

  • VIDEO GUIDES

Huawei Hisilicon Kirin 710 and 980 FRP Remove

Created: 2023-05-25 03:37:23

SUPPORTED MODELS

  • SUPPORTED MODELS

Huawei HiSilicon Device Models

Coming Soon

Device models and support information will be added here.

INSTALLATION GUIDE

  • INSTALLATION GUIDE

Huawei HiSilicon Installation Steps

Installation Steps

Installation instructions for Huawei HiSilicon devices will be provided here.

WRITE FIRMWARE

  • WRITE FIRMWARE

How to Write Board XML Firmware to Huawei Hisilicon devices ?

Created: 2023-05-25 04:09:36

  1. Run HiSilicon SoC, From top right of Form select " Platform: Huawei "
  2. Select Brand and Model
  3. Disassembly your device for test point, Put your device to COM 1.0 Mode
  4. Click USB1TOFASTBOOT Buton, Your device will gonna Fastboot Mode, With Unlocked Bootloader
  5. Do Not Remove USB Cable, Go To Flashing Tab
  6. Select Firmware type Board XML Firmware, Select From your firmware folder XML file
  7. Click Execute Button and Wait for your operation completed.
