OPPO

OPPO - MediaTek Devices

MediaTek-powered OPPO devices.

CONNECTION

  • CONNECTION

How to connect device in Preloader port?

Created: 2023-10-01 12:45:54

For connection in preloader mode there is no different thing needed. Just power off the device and connect usb to device. Your pc should detect the device in preloader mode if correct drivers are installed.

How to connect in brom mode?

Created: 2023-10-01 12:47:03

To connect in brom mode, If the device is not latest security it not possible directly you may need to open device and short the testpoint to ground.

If device is on lower security patch then you can try connecting by pressing both volume buttons and plug the usb cable.

REMOVE DEMO

  • Remove Demo

How to remove Oppo Demo in Flash mode?

Created: 2023-10-11 14:14:19

  1. Select Brand and Model.
  2. Click Boot/Info and Connect Device in BROM mode(MTK USB PORT).
  3. In Service from drop down Select Oppo.
  4. In Method/ Option Select Remove Oppo/Realme Demo.
  5. Click Bootinfo and then execure after bootinfo wait for operation to finish.

FACTORY RESET [FORMAT]

  • FACTORY RESET [FORMAT]

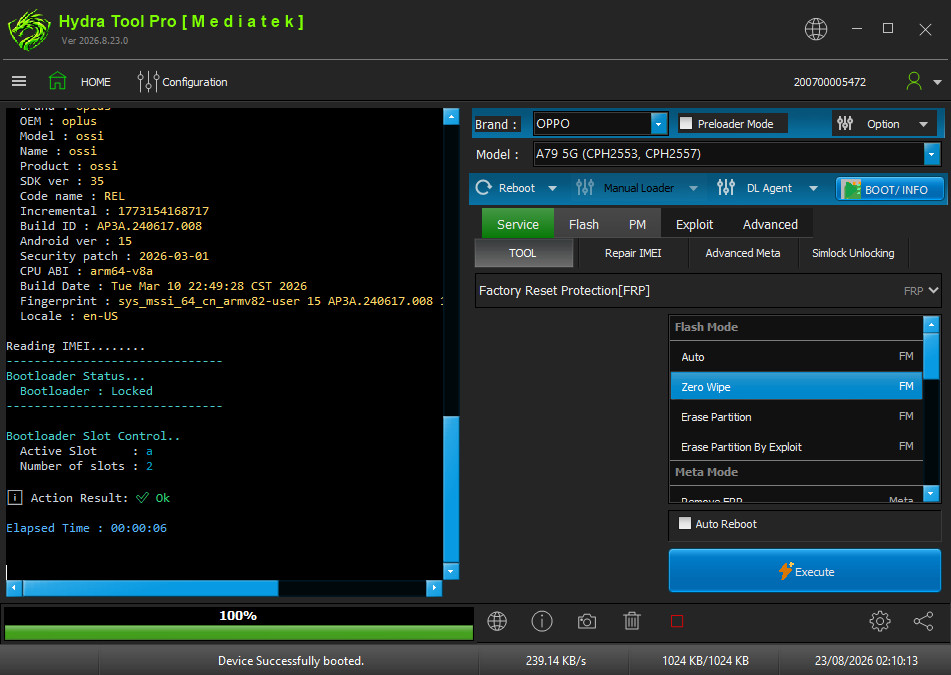

How to Reset Frp in Brom/Preloader mode ?

Created: 2023-07-30 17:57:30

  1. Run Hydra MTK SoC.
  2. Select Brand and model.
  3. In Service tab select 'Factory Reset Protection' from drop down menu.
  4. Under Flash mode function select Zero Wipe as the method.
  5. Click Bootinfo connect device in flash mode (Brom/Preloader).
  6. After Successful Bootinfo Click Execute.

Note

Alternative Method: 1. Select Brand and Model. 2. Do Boot/Info and connect device in BROM mode. 3. Select Factory Reset/Screenlock from Drop down menu in Service Tab. 4. Select Erase userdata under method. 5. Click Execute.

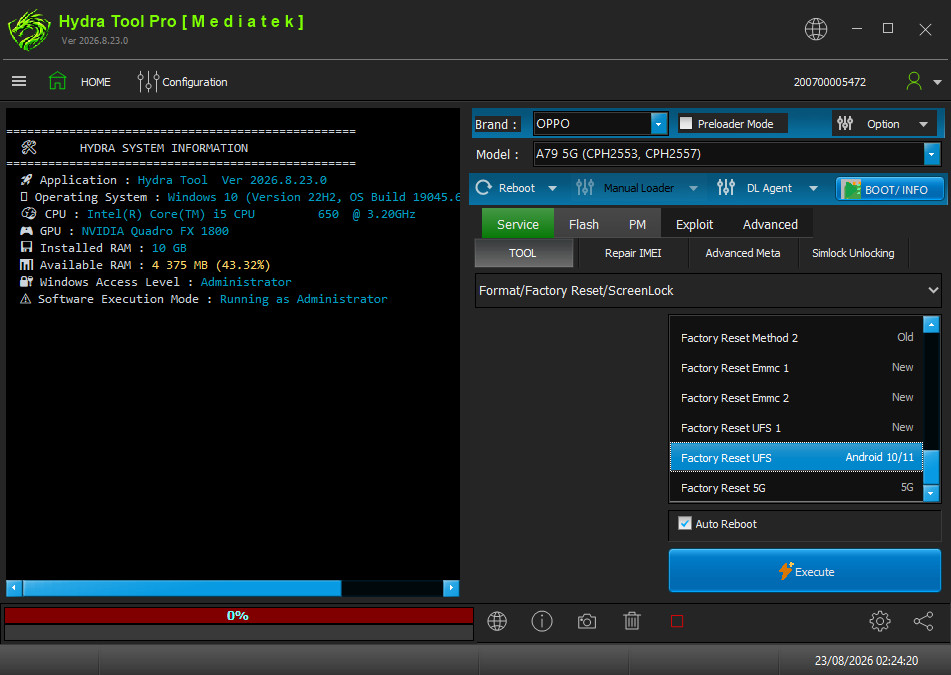

How to Factory Reset New Security Patch?

Created: 2023-10-11 11:47:23

  1. Select MediaTek SoC from home-page.
  2. Tick Preloader mode.
  3. Select Factory Format/Reset from drop down.
  4. Select Erase userdata for method.
  5. Click bootinfo and after successfull bootinfo click execute and wait for the operation to finish
  6. let the device boot, first boot may take time.

How to remove Factory Reset Protection(FRP) new Security?

Created: 2023-10-11 11:47:23

  1. Open MediaTek SoC from home page.
  2. Tick Preloader mode and Select Oppo Method from drop down and do bootinfo.
  3. After succesfull Bootinfo select Factory reset protection from drop down menu in Service tab.
  4. Click execute after selecting Zero Wipe method.
  5. Wait for the operation to finish.

WRITE FIRMWARE

  • WRITE FIRMWARE

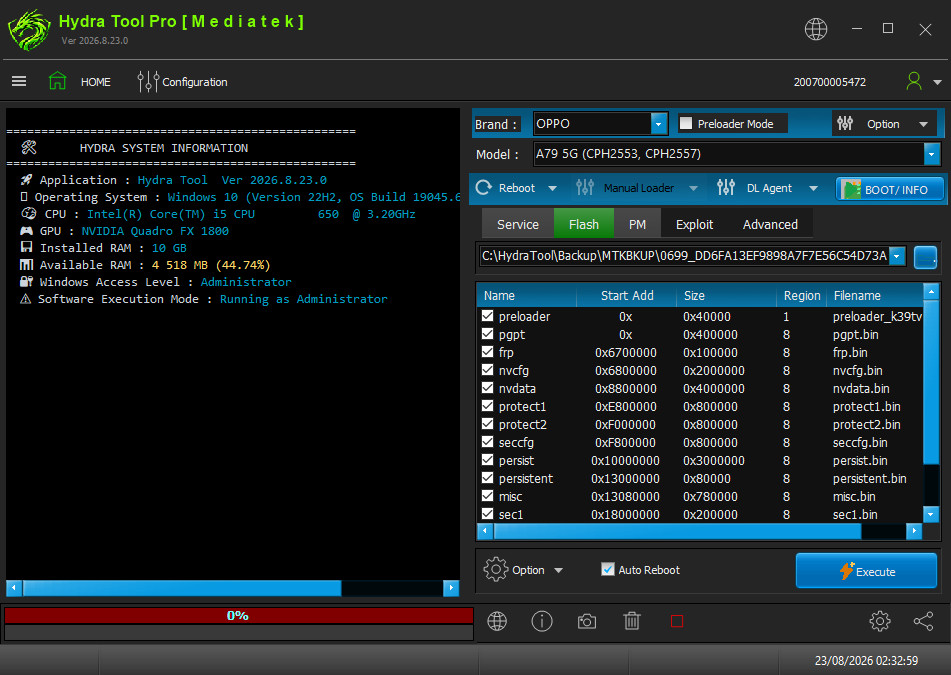

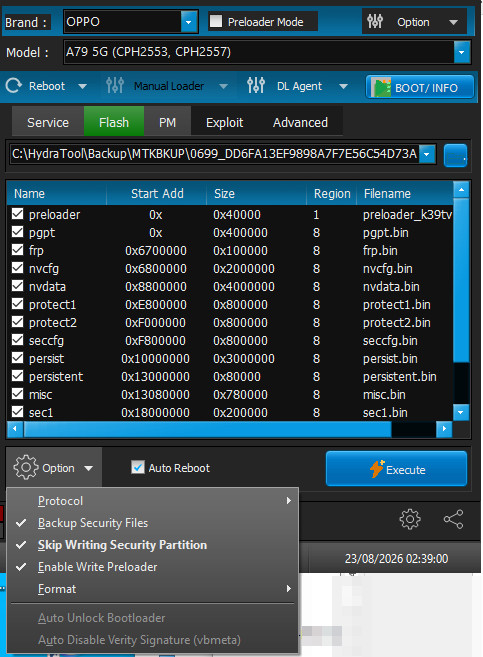

How to write firmware in Flash mode?

Created: 2023-10-01 12:10:53

  1. Open MediaTek Module from homepage.
  2. Tick Preloader mode and select Oppo 1 method
  3. Go to flash too tab and load the scatter file for your device.
  4. Click bootinfo and connect device in preloader mode.
  5. Click execute for flashing and wait for writing to finish.

UNLOCK BOOTLOADER

  • UNLOCK BOOTLOADER

How to Unlock Bootloader in Flash mode?

Created: 2023-10-01 12:10:53

Mediatek Unlock Bootloader by Hydra Dongle for Following Cpu's This operation without losing the data.

Note

Supported CPUs:

  • MediaTek Dimensity 700 (MT6833)
  • MediaTek Dimensity 720 (MT6853V)
  • MediaTek Dimensity 800 (MT6883)
  • MediaTek Dimensity 800 (MT6873)
  • MediaTek Dimensity 820 (MT6875)
  • MediaTek Dimensity 900 (MT6877)
  • MediaTek Dimensity 1100 (MT6891Z/CZA)
  • MediaTek Dimensity 1000L (MT6885)
  • MediaTek Dimensity 1200 (MT6893)
  • MediaTek Dimensity 1000+ (MT6889)
  • MediaTek Helio P65 (MT6768)
  • MediaTek Helio P10 (MT6755)
  • MediaTek Helio A22 (MT6761)
  • MediaTek Helio P22 (MT6762)
  • MediaTek Helio P35 (MT6765)
  • MediaTek Helio P60 (MT6771)
  • MediaTek Helio P90 (MT6779)
  • MediaTek Helio G90 (MT6785)
  • MediaTek MT6739, MT6739W

Steps: 1. Select Brand and model. 2. From drop down menu select Bootloader function. 3. Select Unlock Bootloader under Flash Mode. 4. Do Bootinfo and then click execute.

How to repair IMEI in flash mode? (Brom)

Created: 2023-10-11 11:47:23

  1. Select MediaTek SoC from home page.
  2. Select brand and model.
  3. Select Repair IMEI from service tab then select Oppo Flash mode from drop down menu.
  4. Tick both imei boxes and then Input Original imei for repair.
  5. Click Execute and connect device in brom mode.
  6. Let the operation finish.

Warning

This function is for original repair purpose only. Change of any serial is illegal and Tool doesnt promote it.
