CONNECTION

  • CONNECTION

How to Connect EDL (Emergency Download Mode) ?

Created: 2023-06-29 19:16:08

What is the EDL Mode?

Emergency Download Mode (EDL) is for Connection device to Read & Write Firmware, FRP, Screen Locks, Factory Reset Operations of eMMC and UFS Chips. QDLoader Mode (EDL) is only available for Qualcomm Snapdragon devices. Although connecting devices (cellphones) to EDL Mode depends on Brands or Devices (Mobiles) those are available in the market. Still There are few methods to connect device to EDL Mode.

Note

1. Booting Devices (Cellphones) to EDL Mode using "Boot Keys":

Most generic Qualcomm devices go to EDL Mode by pressing theirs boot keys. Device must be Power off first, Press and Hold Vol(+) UP and Vol(-) Down , then, connect USB Cable. Successfully connection ask you device drivers.

Note

2. Boot to EDL Mode by UMF Cable:

You can buy a unique cable that helps you to take the device into EDL Mode from markets.

Note

3. Booting Devices (Mobiles) using PCB Test point shorting:

Shorting CMD pin on the test points of the device (cellphones) takes the device into EDL mode directly. Test-points on every brands and model are different. You can find pin-out of test-point under Hydra Tool installation folder of you can google it.

Note

4. Boot EDL by device Mode

Hydra Tool has some functions that makes devices (Cellphones) into ELD mode directly. You can take devices

" FTM to EDL ", " DFU to EDL", " Fastboot to EDL", "ADB to EDL" We hae done this so that you can work faster and easier.

How to Enable Manufacture Mode ?

Created: 2023-05-13 13:51:48

  1. Go to Dial Screen on Device
  2. Dial ##2846579## Hidden Menu Will be Enabled
  3. Go to Project Menu -> Background Settings -> Usb Port Settings -> Manufacture Mode
  4. Connect USB cable between your device and your pc, Install Drivers

How to Set Fastboot Mode Huawei Devices ?

Created: 2023-05-13 13:59:03

  1. Power off your device (Cellphone / Mobile).
  2. Press and Hold "Volume Down Button" (-) and Connect USB Cable
  3. Wait until you see FASTBOOT on your cellphone / mobile screen.

RESET FRP

  • RESET FRP

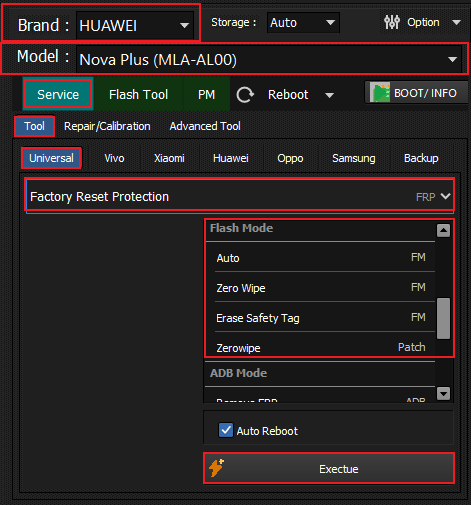

How to remove FRP Huawei Qualcomm?

Created: 2023-11-08 21:16:04

  1. Open Qualcomm Module then select brand and model.
  2. Select Factory reset from drop down and then select remove frp method.

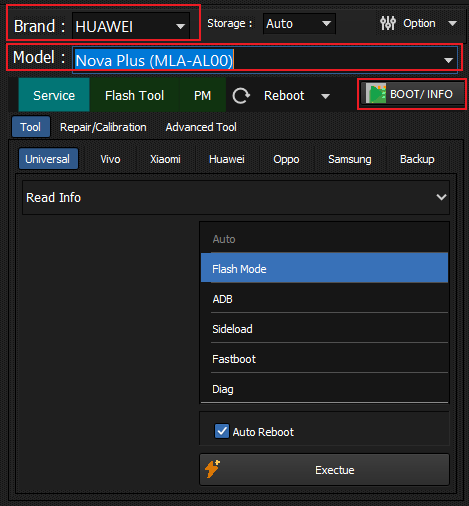

  3. Click bootinfo and the click execute.

Note

You can factory reset device from recovery and then use tool for frp removal.

FACTORY RESET [FORMAT]

  • FACTORY RESET [FORMAT]

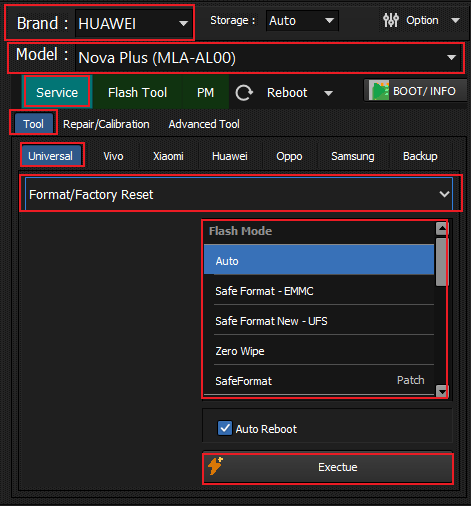

How to factory reset Huawei Qualcomm?

Created: 2023-11-08 22:07:58

  1. Open Qualcomm Module then select brand and model.
  2. Select Factory reset from drop down and then select Format Userdata method.
  3. Click bootinfo and the click execute.

REMOVE HUAWEI ID

  • Remove Huawei ID

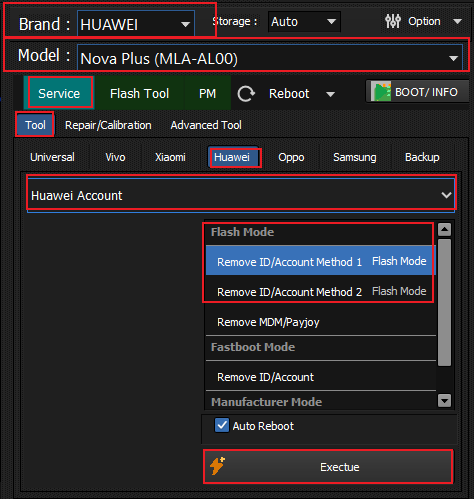

How to remove Huawei qualcomm cpu Huawei ID?

Created: 2023-11-08 22:07:58

  1. Open Qualcomm Module then select brand and model.
  2. Select Huawei Account from drop down and then select Remove ID/Account Method 1/2 method.
  3. Click bootinfo and the click execute.

MDM REMOVE

  • MDM Remove

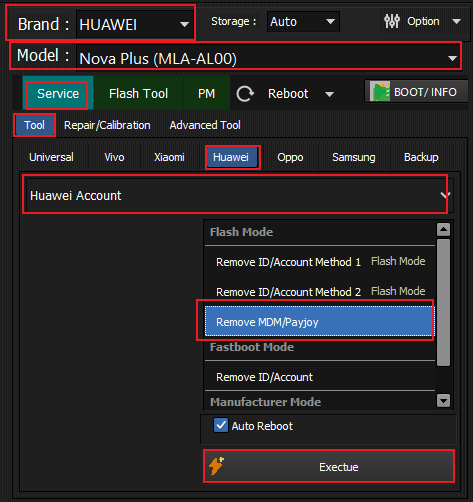

How to remove MDM Lock of Huawei Qualcomm?

Created: 2023-11-08 22:07:58

  1. Open Qualcomm Module then select brand and model.
  2. Select Huawei Account from drop down and then select Remove MDM/Payjoy method.
  3. Click bootinfo and the click execute.
