WRITE FIRMWARE

  • WRITE FIRMWARE

How to write firmware of Oppo Qualcomm? (Old security)

Created: 2023-11-08 22:19:27

  1. Open Qualcomm Module and select brand and model.
  2. You will need qfil firmware you can download from Internet.
  3. Load the Xml's in flash tool tab. Make sure all the partions are loaded.
  4. Connect device in edl mode and click execute.
  5. Wait for operation to finish.

FACTORY RESET [FORMAT]

  • FACTORY RESET [FORMAT]

How to factory reset Oppo Qualcomm by USB ?

Created: 2023-05-24 23:28:00

Warning

Before doing the operation please check wether the device is supported or not for operation.

  1. Connect device in EDL Mode. (Hold Volume Up and Down keys insert usb cable)
  2. Open Hydra Exe and Select Qualcomm Tab,Select Model.
  3. Select Universal Tab in the drop down menu select Factory/Format Reset.
  4. In flash mode select Safe Format(Patch) method.
  5. Click execute and wait for the device to reboot.

How to Format and FRP Remove OPPO A71 CPH1801 ?

Created: 2023-05-25 03:59:41

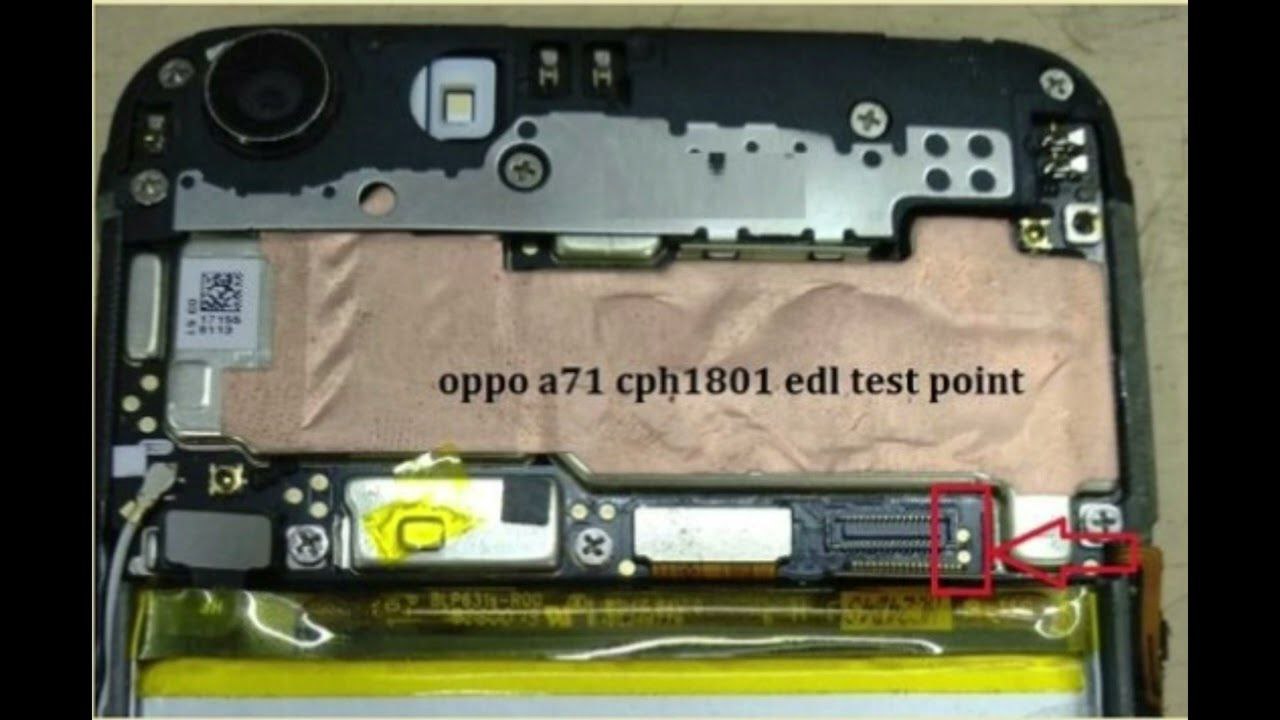

OPPO A71 Testpoint:

OPPO A71 Testpoint

Steps:

  1. Now, Open your device to find the testpoint
  2. Find the test point picture under Hydra Tool installation folder or google it.
  3. Connect testpoint with tweezers or short it with soldering.
  4. Open "Qualcomm" SoC of Hydra Tool
  5. Choose "Oppo" from the brand and Choose Module "A71 (2018) CPH 1801" from the drop-down menu of "Boot Setting".
  6. Now, go to top-right of Hydra Tool and Choose "Oppo"
  7. Choose "Factory Reset" from the drop-down menu.
  8. Choose "A71 Format Userdata"
  9. Click the "Execute" button.
  10. Connect the device with USB DATA CABLE and insert it to the COMPUTER PORT.
  11. Wait until the operation is completed.

How to reset FRP Oppo Qualcomm? (New Security)

Created: 2023-11-08 22:07:58

  1. Open Qualcomm Module and select brand and model. (selecting model is must)

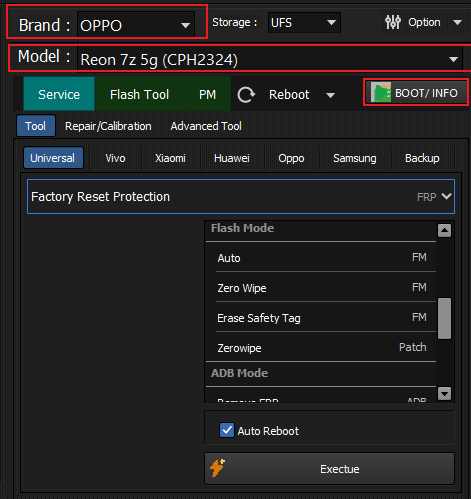

  2. Click bootinfo and let it finish. (There may be error in reading patitions its normal)

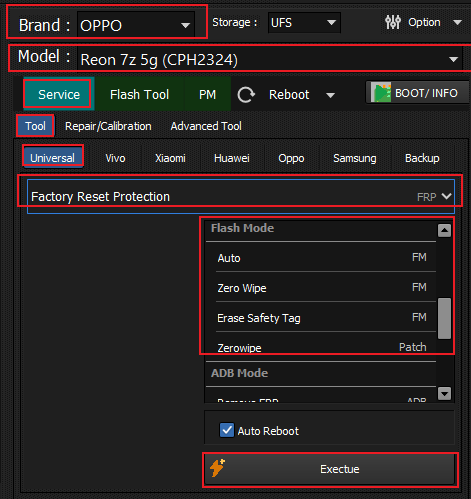

  3. Select Factory reset Protection from drop down and select zero wipe patch in method.
  4. Click execute and let the operation finish. (It may take some to complete)
