ENABLE DIAG

  • ENABLE DIAG

How to Enable Diag OnePlus Smart Phones?

Created: 2023-05-25 00:13:13

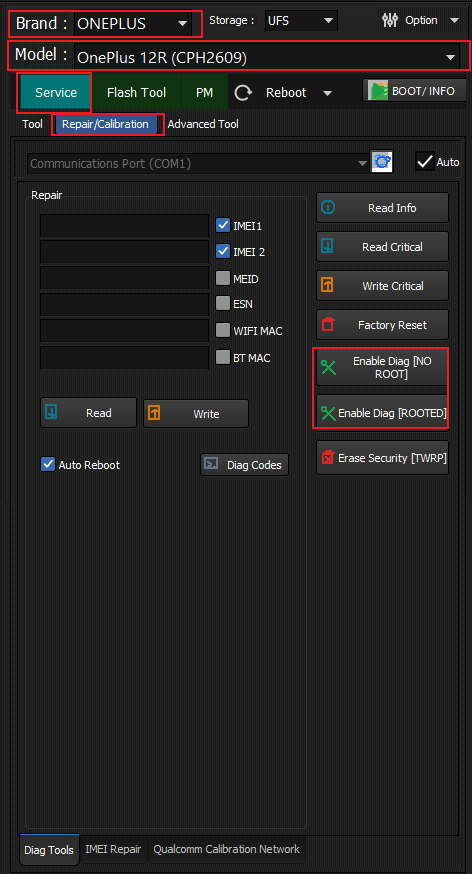

OnePlus Qualcomm Enable Diag Port

There are two ways to enable Diag on OnePlus devices:

  1. For Android versions lower than 10: Enable Diag by Dial Code: type #801# and enable Engineering Mode.
  2. For Android 10 and above: Root your device and from Reboot Box select [ADB] Enable Diag (Rooted).

REPAIR IMEI

  • REPAIR IMEI

How to OnePlus IMEI Repair by Diag Port?

Created: 2023-05-25 00:14:41

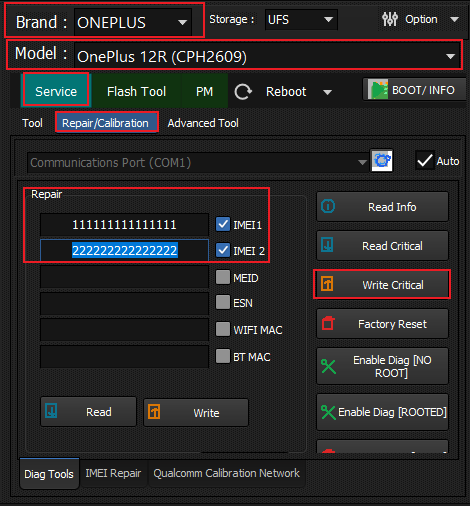

OnePlus Qualcomm IMEI Repair by Diag Mode

How to Enable Diag Port of the OnePlus Smart Phones?

  1. For Android versions lower than 10: Enable Diag by Dial Code: type #801# and enable Engineering Mode.
  2. For Android 10 and above: Root your device and from Reboot Box select [ADB] Enable Diag (Rooted).

How to Repair IMEI of OnePlus Qualcomm Device by Hydra?

  1. Launch the Hydra Tool Software on your computer.
  2. Navigate to the Qualcomm Module within the software.
  3. Locate the "Repair/Calibration" section and click on the "IMEI Repair" tab.
  4. In the "Methods" box, select the "OPPO/OnePlus IMEI Diag Method."
  5. Enable the IMEI option and enter the IMEI numbers in the provided boxes. Make sure to enter the correct IMEI numbers for your device.
  6. Untick the "Auto Port" option.
  7. Select the Diag ComPort of your device. This should be the appropriate COM port for your connected device.
  8. Finally, click on the "Repair IMEI [Diag]" button and wait for the operation to complete.

Warning

Repairing the IMEI is a delicate process and should only be done if you have a valid reason and are authorized to do so. Modifying or tampering with the IMEI of a device may be illegal in some regions.

WIPE/READ/RESTORE SECURITY

  • WIPE/READ/RESTORE SECURITY

How to Wipe Security by EDL Mode?

Created: 2023-06-10 04:04:36

  1. Before starting the operation, charge the battery to more than 30%.
  2. Put the device into EDL mode either using EDL cable, software, or manually.
  3. (Note: If device needs ADB mode, then, you need to root the device or use TWRP.)
  4. Install QdLoader driver, you can get it from our Support area at Drivers folder.
  5. Open Hydra Exe and then Open Qualcomm Soc.
  6. Untick "Auto".
  7. Select Device (Cellphone or mobile) Brand and Model.
  8. If you do not see the list of Brand and Model in Hydra Tool, then, leave it as "Auto".
  9. Go to "Service" Tab.
  10. Tick "Partitions" from drop down list.
  11. Choose "wipe Security" ROOTED "Wipe security" TWRP from ADB Mode.
  12. Tick "Auto Restart" right above the EXECUTE button. This makes your device ON after process or action is completed.
  13. Click "Execute" Button.

RESET FRP

  • RESET FRP

How to Reset FRP on OnePlus Qualcomm?

Created: 2026-09-28 12:00:00

OnePlus Qualcomm FRP

  1. Open Hydra Tool, go to Qualcomm module.
  2. Select Brand OnePlus, model 6T (A6010, A6013).
  3. Click BOOT/INFO under the functions list.
  4. Power off the phone. Hold Volume Up + Volume Down and connect USB.
  5. After phone booting, select Zerowipe Patch under Service > Tool > Universal > Factory Reset Protection and click Execute.
  6. Wait for FRP Reset Done message.
  7. Disconnect and power on the phone.

Note: Some OnePlus phones need Test Point to force EDL mode. Note: If FRP is still there, use another method from the list.

FACTORY RESET [FORMAT]

  • FACTORY RESET [FORMAT]

How to Factory Reset OnePlus Qualcomm?

Created: 2026-09-28 12:00:00

OnePlus Qualcomm Factory Reset

  1. Open Hydra Tool, go to Qualcomm module.
  2. Select Brand OnePlus, model 6T (A6010, A6013).
  3. Click BOOT/INFO under the functions list.
  4. Power off the phone. Hold Volume Up + Volume Down and connect USB.
  5. After phone booting, select Safeformat Patch under Service > Tool > Universal > Format/Factory Reset and click Execute.
  6. Wait for Format Done message.
  7. Disconnect and power on the phone.

Note: Some OnePlus models need Test Point or EDL cable to force EDL mode. Note: If Format is not done, try another method from the list like "Safe format New - UFS".

WRITE FIRMWARE

  • WRITE FIRMWARE

How to Write Firmware on OnePlus Qualcomm?

Created: 2026-09-28 12:00:00

OnePlus Qualcomm Write Firmware

  1. Open Hydra Tool, go to Qualcomm module.
  2. Select Brand OnePlus, model 6T (A6010, A6013).
  3. Click BOOT/INFO under the functions list.
  4. Power off the phone. Hold Volume Up + Volume Down and connect USB.
  5. After phone booting, load firmware file (xml) in File Type manually (Image Path + Patch XML) or select Auto Scan Raw/Patch XML, select firmware path, then click Execute on Flash Tool Tab.
  6. Wait for Flashing Done message.
  7. Disconnect and power on the phone.

Note: Some OnePlus phones need Test Point to force EDL mode.
